What is the difference between single-section and multi-section octagonal poles?

**Single-section vs multi-section octagonal poles** differ in construction, height capability, and application. **SINGLE-SECTION POLES:** **CONSTRUCTION:** One-piece fabrication from base to top, uniform octagonal cross-section throughout, welded from flat steel plates with longitudinal seam, simpler manufacturing process, lighter weight. **HEIGHT RANGE:** 3m to 8m maximum (transport limitations), ideal for low to medium heights, no joints or connections to weaken structure, easier quality control. **ADVANTAGES:** Lower cost (₹8,500-15,000), faster installation (no assembly required), fewer failure points, cleaner appearance without visible joints, better for aesthetic applications. **APPLICATIONS:** Residential street lighting (3-6m), park and garden lighting (4-8m), traffic signals at intersections (6-8m), commercial area lighting (5-8m), signage mounting (3-6m). **MULTI-SECTION POLES:** **CONSTRUCTION:** 2-3 sections joined by flanges or sleeves, tapered design (wider base, narrower top), bolted or welded connections between sections, allows transport of longer poles in segments. **HEIGHT RANGE:** 8m to 14m (segmented transport), suitable for highways and wide roads, sections assembled on-site, heavier construction for stability. **ADVANTAGES:** Achieves greater heights, easier transportation (fits standard trucks), field assembly flexibility, can replace damaged sections individually, suitable for heavy lighting loads. **APPLICATIONS:** Highway lighting (10-14m), main road arterials (8-12m), industrial area lighting (9-14m), heavy traffic signal poles (8-10m), large signage and billboards (10-14m). **JOINT TYPES:** Flange connections (bolted, easier maintenance), sleeve joints (welded/bolted, stronger), telescopic sections (for adjustable heights). **PRICING:** Single-section 3-8m: ₹8,500-15,000, Multi-section 8-10m: ₹18,000-25,000, Multi-section 10-12m: ₹26,000-32,000, Multi-section 12-14m: ₹33,000-35,000. **SELECTION GUIDE:** Choose single-section for ≤8m heights, residential areas, lower budgets, simpler installation. Choose multi-section for >8m heights, highways, heavy loads, professional infrastructure. Both types available in hot-dip galvanized or powder-coated finishes with 20+ year lifespan.

Can octagonal poles be powder-coated in custom colors?

**Yes, powder coating in custom colors** is available for octagonal poles beyond standard galvanized finish. **POWDER COATING PROCESS:** Poles first hot-dip galvanized for base corrosion protection, surface pretreated and phosphated for adhesion, electrostatic powder spray application, oven curing at 180-200°C for 15-20 minutes, smooth durable finish with 60-80 micron thickness. **COLOR OPTIONS:** **STANDARD COLORS:** Black (most popular for urban areas), White (for residential/park lighting), Dark Green (garden and park poles), Grey (industrial areas), Silver (modern commercial zones), Brown (heritage and theme areas). **CUSTOM COLORS:** RAL color chart (200+ options), Pantone matching available, corporate branding colors, municipality-specific colors, heritage color matching (old city areas). **BENEFITS:** **AESTHETIC:** Matches architectural themes, enhances urban beautification, color-coded for different zones (traffic/street/signage), professional appearance for premium projects, customizable for corporate campuses. **FUNCTIONAL:** Dual protection (galvanized base + powder coating top), UV-resistant colors won't fade, scratch and impact resistant, easy to clean and maintain, reflects light better (white/light colors). **APPLICATIONS:** **RESIDENTIAL:** Light colors (white, cream, beige) for townships, dark colors (black, grey) for gated communities, green/brown for landscaped areas, color-matched to building exteriors. **COMMERCIAL:** Corporate colors for IT parks (Gachibowli, Hitech City, Madhapur), branded colors for special economic zones, theme colors for shopping districts, heritage colors for old city areas (Charminar, Nampally). **MUNICIPAL:** Standard municipal colors for uniformity, zone-specific colors (green for parks, blue for water bodies), traffic management color coding, tourist area theme colors. **PRICING:** Galvanized only: ₹8,500-35,000 (base price), Single-color powder coating: +₹1,500-3,000 per pole (height-dependent), Custom color matching: +₹500-1,000 extra, Dual-tone or multi-color: +₹2,000-4,000 per pole. **DURABILITY:** Powder coating lifespan 8-12 years (vs 20-30 for galvanizing), may require recoating after 10 years, ideal for aesthetic priority projects, combines protection + appearance. **MINIMUM ORDER:** Custom colors: 25+ poles (to justify powder coating setup), Standard colors: 10+ poles, Sample poles available for color approval. **LEAD TIME:** Standard galvanized: 1-2 weeks, Standard powder coating: 2-3 weeks, Custom colors: 3-4 weeks (includes color matching and approval). Call +91-9493866029 with your color requirements, RAL codes, or reference images for quote!

How is installation done for octagonal poles?

**Professional installation process** ensures safe and durable octagonal pole mounting. **FOUNDATION PREPARATION:** **SITE SURVEY:** Soil testing to determine bearing capacity (required for >8m poles), underground utility mapping (avoid cables/pipes), wind zone assessment (Hyderabad Zone II-III), foundation depth calculation based on pole height and load. **EXCAVATION:** Foundation pit depth: 1/10th of pole height + 0.5m (e.g., 8m pole needs 1.3m depth), width: 2-3x base plate diameter, square or circular pit as per design, dewatering if groundwater present. **FOUNDATION CONSTRUCTION:** PCC bed leveling (50-100mm), reinforcement cage as per structural drawing (typically 12-16mm TMT bars), anchor bolt installation using template/jig (critical for alignment), M20/M25 concrete pouring (as specified), curing for 14-21 days before pole erection. **POLE ERECTION:** **SINGLE-SECTION POLES (3-8m):** Crane or manual lifting (based on height/weight), alignment using spirit level and plumb bob, base plate bolted to anchor bolts (M16-M24 bolts), nuts tightened to specified torque, verticality checked (max 1:200 deviation), grouting around base plate. **MULTI-SECTION POLES (8-14m):** Bottom section erected first, subsequent sections lifted and aligned, flange bolting (M16-M20 bolts, min 8 nos per joint), torque wrench used for uniform tightening (80-120 Nm), joint sealant applied for weather protection, complete assembly checked for verticality. **ELECTRICAL WORK:** Cable entry through base or mid-section opening, internal wiring through pole, cable termination at luminaire mounting, earthing connection to earth pit (critical safety), luminaire mounting and alignment, testing before commissioning. **FINISHING:** Base plate grouting/covering, touch-up painting if scratches during handling, area cleaning and landscaping, handover with test certificates. **SAFETY STANDARDS:** Work at height safety equipment (harnesses, scaffolding), electrical safety (isolation, testing), traffic management during installation (road closures if needed), IS 3043 compliance for street light installation. **INSTALLATION COST:** **MANPOWER:** 3-6m poles: ₹1,500-2,500 per pole (2-3 laborers + supervisor), 6-10m poles: ₹2,500-4,000 per pole (crane + 4-5 workers), 10-14m poles: ₹4,000-6,000 per pole (heavy crane + specialized team). **FOUNDATION:** Included in above if standard design, deep/special foundations additional ₹2,000-5,000, soil testing ₹5,000-10,000 per site (one-time for multiple poles). **TIMELINE:** Single pole: 1 day (foundation cured earlier), 10-pole batch: 3-5 days, 50-pole project: 2-3 weeks (phased installation). **WARRANTY:** 2-year structural warranty post-installation, 1-year electrical warranty, foundation design liability covered. **DIY NOTES:** Not recommended for >6m poles (safety risk), requires structural knowledge and equipment, municipality approval mandatory, professional installation ensures longevity and safety. INSPRAY SYSTEMS provides complete installation services with experienced teams across Hyderabad, Telangana, and Andhra Pradesh!

What maintenance is required for octagonal poles?

**Minimal maintenance required** for galvanized octagonal poles with periodic inspections. **GALVANIZED POLES (Standard Finish):** **ROUTINE MAINTENANCE:** Visual inspection every 6 months (check for damage, corrosion spots, loose bolts), cleaning once a year (remove dirt, bird droppings with water + mild detergent), bolt tightening if needed (check flange bolts on multi-section poles), electrical connection check (loose wiring, damaged cables), luminaire cleaning and alignment. **LONG-TERM CARE:** Touch-up painting for minor scratches (zinc-rich paint), full repainting after 15-20 years if needed (surface preparation + zinc coating), structural assessment after extreme weather events (storms, floods), replacement of damaged sections if applicable. **COST:** Annual inspection: ₹200-500 per pole, Cleaning: ₹300-600 per pole, Touch-up painting: ₹500-1,000 per pole, Full repainting: ₹2,000-5,000 per pole (after 15-20 years). **POWDER-COATED POLES (Custom Colors):** **INCREASED CARE:** Monthly visual inspection (powder coating can chip/scratch), immediate touch-up for chips (prevents rusting underneath), annual deep cleaning (non-abrasive cleaners), recoating every 8-12 years (vs 20+ for galvanized alone). **RECOATING PROCESS:** Surface preparation (cleaning, light sanding), primer application if base exposed, fresh powder coating, oven curing (may require pole removal), cost: ₹3,000-7,000 per pole. **COMMON ISSUES & SOLUTIONS:** **CORROSION SPOTS:** Cause: Galvanizing damage during installation/transport, Solution: Wire brush + zinc-rich primer + touch-up paint, Prevention: Careful handling, protective wrapping during transport. **LOOSE BOLTS (Multi-section):** Cause: Vibration from wind/traffic, thermal expansion-contraction, Solution: Re-torque to specified values (80-120 Nm), Prevention: Use lock washers, thread sealant, periodic checks. **BASE WATER LOGGING:** Cause: Poor drainage, damaged gaskets, Solution: Improve site drainage, seal entry points, Prevention: Proper foundation design with drainage provisions. **BIRD NESTING:** Cause: Open top or maintenance openings, Solution: Install bird guards/caps, regular cleaning, Prevention: Sealed caps, periodic inspection. **ELECTRICAL ISSUES:** Cause: Moisture ingress, loose connections, cable damage, Solution: Cable replacement, connector renewal, waterproof glands, Prevention: Quality electrical work, regular testing. **LIFESPAN:** **GALVANIZED POLES:** 20-30 years structural life, 25-40 years with proper maintenance, minimal cost (₹500-2,000 annually per pole). **POWDER-COATED POLES:** 20-30 years structural, 8-12 years coating life (recoating needed), moderate cost (₹1,000-3,000 annually per pole). **MAINTENANCE CONTRACTS:** **ANNUAL MAINTENANCE CONTRACT (AMC):** Quarterly inspection + cleaning + minor repairs, 24/7 emergency response, documentation and reporting, cost: ₹2,000-5,000 per pole per year. **AVAILABLE FOR:** Municipal projects with 50+ poles, corporate campuses, townships and gated communities, highway lighting projects. **SELF-MAINTENANCE TIPS:** Keep poles clean (prevents corrosion), check after storms/accidents, don't ignore minor damage (becomes major), use only recommended cleaners (avoid harsh chemicals), maintain records of inspection and repairs. **REPLACEMENT INDICATORS:** Severe rust (>30% surface), structural cracks or bending, repeated electrical failures, corrosion near base (foundation damage), age >30 years with visible deterioration. INSPRAY SYSTEMS offers maintenance contracts and spare parts for all octagonal pole installations across Hyderabad and Telangana!

Octagonal Street Light Poles Traffic Signal Poles Hyderabad

Galvanized Octagonal Poles Street Lighting Signage

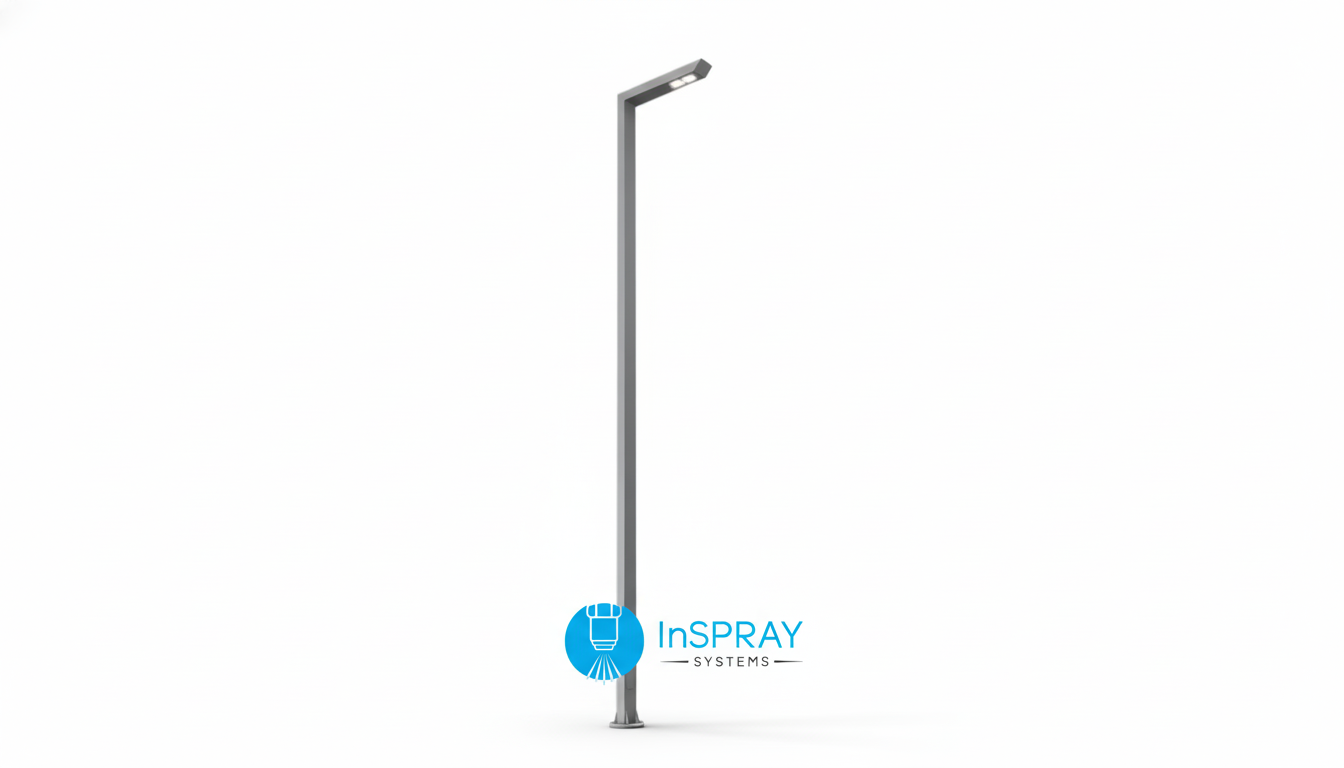

Multi Section Octagonal Poles Municipal Lighting

Octagonal Street Light Poles Hyderabad

From ₹8,500 | Durable aesthetically pleasing design for street lights, traffic signals & signage

Premium octagonal street light poles crafted from galvanized steel. Perfect for street lighting, traffic signals, and signage applications across Gachibowli, Madhapur, Hitech City, Kukatpally, Kondapur and all Hyderabad. Available in single or multiple sections with customizable heights.

Material: Galvanized steel (IS 2062 compliant)
Height: 3m to 14m (customizable)
Section: Single or multiple sections
Application: Street lights, traffic signals, signage
Finish: Hot-dip galvanized or powder-coated
Lifespan: 20-30+ years maintenance-free
Warranty: 2 years structural + 10 years coating
MOQ: 10 poles (bulk discounts available)

Call +91 94938 66029 WhatsApp Now

Why Choose Octagonal Street Light Poles?

Aesthetic Design

Octagonal shape offers superior aesthetics compared to round poles. Clean lines enhance urban streetscapes. Available in custom powder-coated colors to match municipal themes.

Versatile Applications

Suitable for street lighting, traffic signals, and signage mounting. Single-section for 3-8m heights, multi-section for 8-14m. Customizable arm configurations for various luminaires.

Quality Construction

Galvanized steel resists corrosion for 20-30 years. Precision fabrication with smooth welds. Flange connections on multi-section poles for easy assembly and maintenance.

Customer Reviews

Ramesh Rao

★★★★★

"Installed 200 octagonal poles for traffic signal upgrades across Gachibowli, Madhapur, and Hitech City. Excellent build quality with smooth galvanized finish. Multi-section design makes installation easier. Perfect for urban traffic management!"

Sunil Kumar

★★★★★

"Ordered 150 units of 8m octagonal poles for residential street lighting. Aesthetically pleasing design enhances neighborhood appearance. Galvanization quality ensures long life. Great pricing for bulk orders. Highly recommend!"

Frequently Asked Questions

Single-section (3-8m): One-piece construction, lighter weight, easier installation, lower cost (₹8,500-15,000), ideal for residential streets and parks. Multi-section (8-14m): 2-3 sections with flange connections, allows greater heights, easier transport, suitable for highways and main roads (₹18,000-35,000). Choose single-section for ≤8m heights and simpler projects; multi-section for >8m professional infrastructure.

Yes! Powder coating available in standard colors (black, white, green, grey, silver, brown) and custom RAL/Pantone colors. Process: hot-dip galvanizing first, then powder coating for dual protection. Cost: +₹1,500-3,000 per pole for standard colors, +₹2,000-4,000 for custom/dual-tone. Popular for municipal beautification projects and corporate campuses. Coating lasts 8-12 years. Minimum order: 25 poles for custom colors.

Foundation: Pit depth 1/10th pole height + 0.5m, reinforcement cage, M20/M25 concrete, 14-21 days curing. Erection: Single-section lifted by crane/manual, multi-section assembled on-site with flange bolting. Verticality checked, base plate bolted to anchor bolts. Cost: 3-6m poles ₹1,500-2,500, 6-10m poles ₹2,500-4,000, 10-14m poles ₹4,000-6,000 per pole. Includes foundation, electrical wiring, testing. INSPRAY SYSTEMS provides complete installation services.

Minimal maintenance required! Galvanized poles: Visual inspection every 6 months, annual cleaning, touch-up painting for scratches. Lifespan 20-30 years. Annual cost ₹200-500 per pole. Powder-coated poles: Monthly inspection, recoating every 8-12 years. Common issues: Loose bolts (re-torque), corrosion spots (touch-up), bird nesting (install caps). AMC available ₹2,000-5,000 per pole/year for large projects. Replacement needed if severe rust, cracks, or age >30 years.

⭐ Octagonal Poles Success Stories

Customers who chose our octagonal poles services

Rajesh Kumar

Business Owner | Hyderabad

⭐⭐⭐⭐⭐

"Excellent octagonal poles quality and service. The team delivered exactly what we needed within timeline. Professional work, competitive pricing, highly recommended for anyone looking for quality octagonal poles solutions in Hyderabad!"

Sanjay Mehta

Manager | Secunderabad

⭐⭐⭐⭐⭐

"Outstanding quality and attention to detail. The octagonal poles exceeded our expectations. Fast turnaround time, responsive customer service, and fair pricing. Will definitely order again for future projects!"

Vikram Reddy

Entrepreneur | Gachibowli

⭐⭐⭐⭐⭐

"Best octagonal poles provider in Telangana! Quality is top-notch, delivery was on time, and the team was very helpful throughout the process. Highly satisfied with the results and would recommend to others!"

❓ Octagonal Poles FAQs

Common questions about our octagonal poles services

What octagonal poles options do you offer?

We offer comprehensive octagonal poles services with various options to suit your needs. Our range includes standard and custom solutions, different materials/specifications, and competitive pricing for both small orders and bulk quantities. Contact us for detailed options specific to your requirements.

What are the pricing and lead times?

Pricing varies based on specifications, quantity, and customization requirements. We offer competitive rates with discounts for bulk orders. Lead times typically range from 3-10 working days depending on order complexity. Express service available for urgent requirements. Contact us at +91-9493866029 for a free quote.

Do you offer customization and design support?

Yes! We provide full customization services including design consultation, technical drawings, material selection guidance, and prototyping. Our experienced team can help optimize your design for best results. We accept various file formats and also offer design services if you need help creating specifications.

What areas do you serve and how is delivery handled?

We serve Hyderabad, Secunderabad, and all of Telangana with fast delivery options. Free delivery available for orders above certain value within city limits. We also ship pan-India through reliable courier partners. Packaging is done carefully to ensure products reach you in perfect condition. Installation support available for applicable products.
